6SN7 RESERVE

Tube Pack: Single (1 tube)

Single (1 tube) Matched Pair (2 tubes) Matched Quad (4 tubes)

Buy on Apos 🇺🇸

Buy on Bay Bloor Radio 🇨🇦

Buy on VAL HiFi 🇬🇧

Buy on Gedeon Audio 🇭🇺

Buy on Passion for Sound 🇦🇺

Buy on ARK Audio 🇸🇪

Buy on HiFi Connect 🇮🇱

Product Highlights

Hand-selected and tested

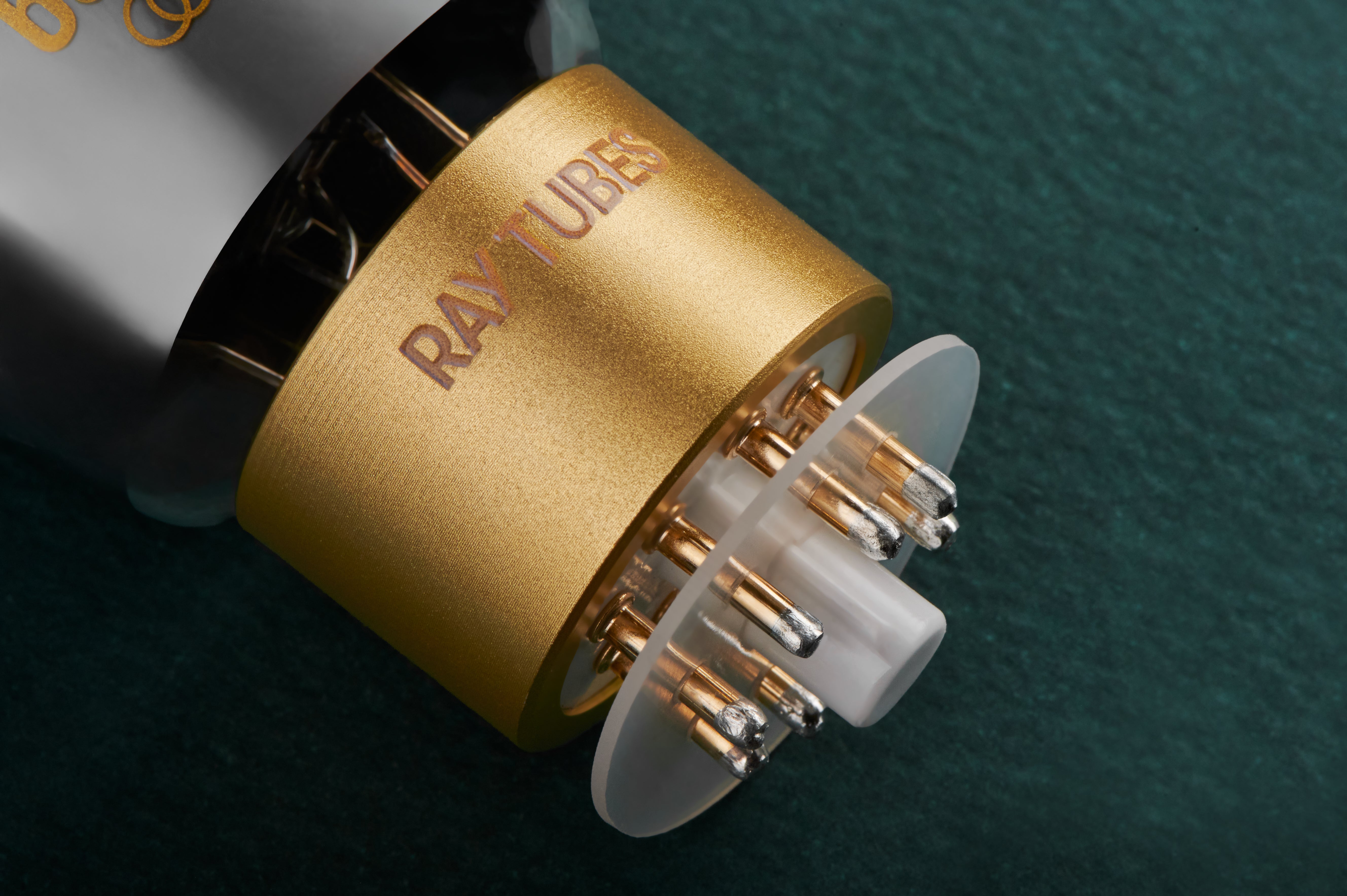

Gold pins for corrosion resistance and excellent conduction
A substantial upgrade from standard NOS tubes
Magic Coating: Monocrystalline carbon coating enhances sound by cooling, blocking noise, and allowing for quicker electron transmission
Low noise and microphonics
Fewer than 5% of the tubes commissioned for production meet our voltage, current, and sound signature standards
12-month warranty against manufacturing defects

Technical Specification

Tube Type: 6SN7
Tube Socket: 8-pin

Max Anode Dissipation Power: 5 W
Max Screen Dissipation Power: N/A
Output Power in Class A1 Amp (Single Tube): N/A
Output Power in Class AB1 Amp: N/A

Max Anode Voltage: 450 V
Max Screen Voltage: N/A
Max Grid Voltage: ~8 V
Heater Voltage: 6.3 V
Heater Current: 0.6 A
Transconductance: 2.6 mA/V
Amplification Factor: 20
Internal Resistance: 7.7 kΩ

Package Content

Set of four, two, or single vacuum tube
User handbook featuring burn-in guidelines
Certificate of authenticity and warranty
